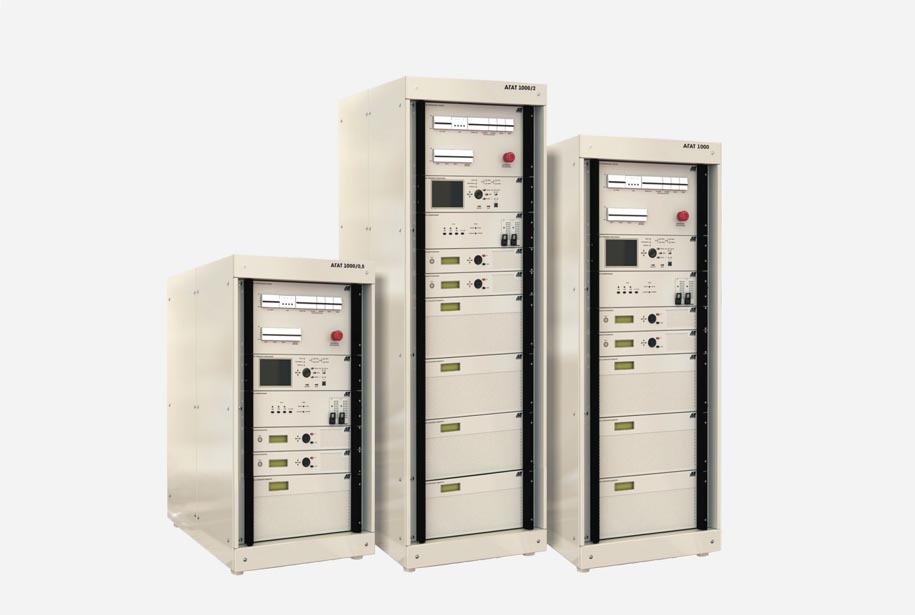

Our transmitters are the first Belarusian development of digital video transmitters. The transmitters are made with the usage of modern hardware components, have convenient intuitive functional control interface and have minimal power consumption (highest performance factor). In addition to all the above-mentioned advantages, our transmitters have one more - the price is lower than that of foreign analogues.

Features:

• stable output power;
• protection mode (automatic, manual);
• remote control and parameter control;
• protection against overload, output standing-wave ratio and overheat;
• control of supply voltages;
• forced air cooling;
• low power consumption.

Specifications:

	Specifications	AGAT-1000/0.5kW	AGAT-1000/1kW	AGAT-1000/2kW
General	Operation standard	DVB-T, DVB-H
	Operation frequency range	470-862 MHz
	Power consumption, kW, not more	3	6	12
	Power supply	~ 400 В, 50Hz
	Cooling	Air
Dimensions and weigh	Dimensions, mm, not more	1330*605*905	1785*605*905	2021*605*905
	Weight, not more	460	580	640
Usage conditions	Allowable temperature	От +5С до +45 С
	Maximum relative humidity (at +20 С)	80%
Input	4хASI (2-HP, 2-LP)	SMA
	External clock synchronization input	SMA
	External time synchronization input	SMA
Modulation	Modulation type	COFDM
	Carrier modulation	QPSK, 16QAM, 64QAM
	Number of carriers	2K, 8K, 4K
	Protection interval	1/4, 1/8, 1/16, 1/32
	Code rate	1/2, 2/3, 3/4, 5/6, 7/8
	Bandwidth, MHz	5, 6, 7, 8
	Single-frequency network operation	Is possible
	MER	> 35 dB
	BER (перед декодером Витерби)	<10-9
	Nonlinear correction	Digital
	Hierarchical mode	Is possible
	Spectrum inversion	Is possible
	Test mode	In
Output	Rated output power, W	500	1000	2000
	Impedance	500м
	Deviation of output power, not more	+/- 10%
	Output connector	EIA 1-5/8”
	Sidebands (with channel filter)	n accordance with STB 1697-2010
	Harmonic level (with channel filter)	<-75 dB
Control and indication	Local	Keyboard, LCD display
	Remote	Ethernet
